- No Stick, No Click, Just Lay
- Proven loose-lay system installed in global market mainly for heavy commercial installation
with its unique structure of unparalleled dimensional stability, diverse designs, and size options.
-
EPT™ Shield
- Safe and strong 2-fold LVT surface coating technology
- Anti-bacterial coating with superior
scratch-resistance
-
EMT™ Core
- Stable and eco-friendly LVT core technology

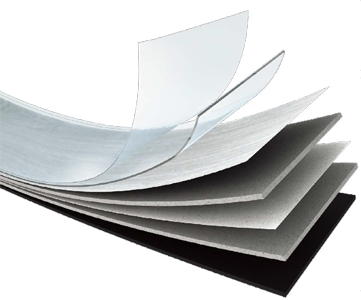

- Unique multi-layer structure with supreme
dimensional stability
Difference Specialties
-
- EPT™ Shield & EMT™ Core Technology
-
NOX Corporation, one of the world-largest LVT manufacturers, traces its roots to chemical engineering with expertise in core components of LVT flooring for more than 50 years. Its NOX EPT™ Shield & EMT™ Core technologies are the foundation of ECOLAY+ innovation, providing the most stable and eco-friendly products.
-
- EPT™ Shield
-
⋅ Safe and strong 2-fold LVT surface shield technology

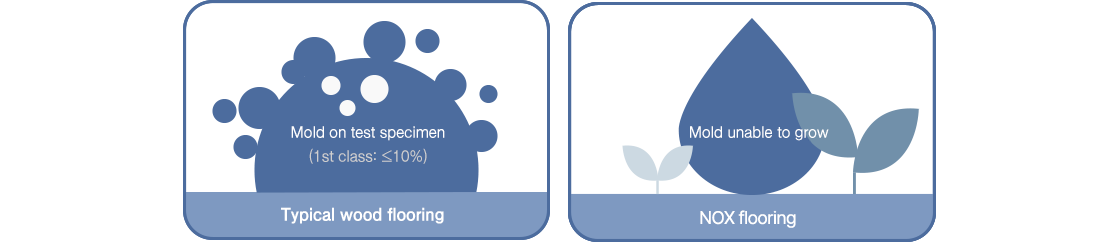

⋅ PU or Ceramic PU coating treatment [Anti-Bacterial] without
using Nano-silver [controversial to be harmful for human health]
⋅ Clear design protection layer
-
- EMT™ Core-6L
-
⋅ Stable and eco-friendly LVT core technology

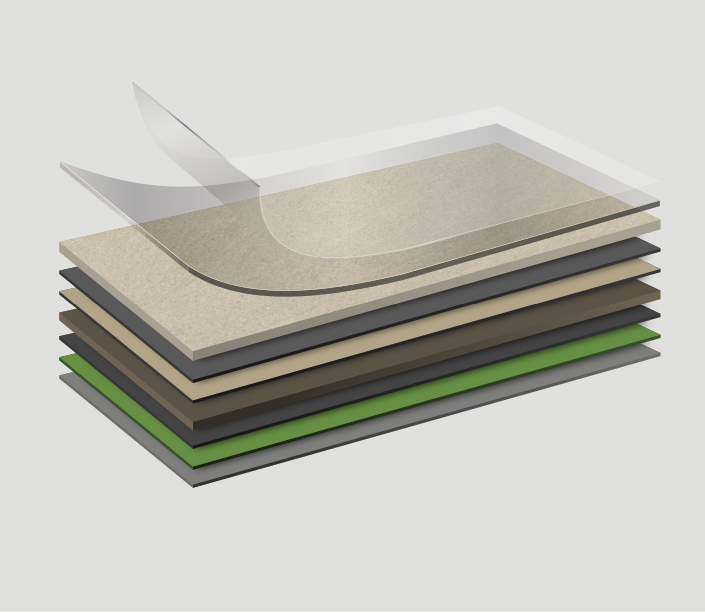

⋅ 6-layered EMT™ Core structure for long-term dimensional stability
- Proven Innovation of ECOLAY since 2003
- Distinguished NOX EMT™ Core structure ensures the unparalleled dimensional stability and extra sound absorption of ECOLAY+.
-
-
- Advantages of ECOLAY+
-
-
- Most diverse sizes
- - 3 plank sizes including grande plank size
- 2 tile sizes including grande tile size
-
- Superior dimensional stability with
- - NOX EPT™ Shield & EMT™ Core technologies
- Fiberglass stabilization layer
-
- Easy to install, replace,
and remove
- Easy to install, replace,
-
- Silent and soft floor
-
- Certified low VOCs and
non-phthalate technology
- Certified low VOCs and
-
- 100% recyclable
-
- Ultra water-resistant
-
- Suitable for heated floor
-
- HD design
-
- Easier maintenance than
traditional laminated wood
and natural stone flooring
- Easier maintenance than
-
Additional Features
Diverse design and technical features are available upon request
-
- Surface Embossing
-
- ECOLAY+ with 7 different surface embossing textures including natural Embossed-In-Register
-
I-14 Wood structure -
I-06 Slate structure -
I-03 Sand structure -
I-17 Natural wood structure -
I-22 Wood structure -
I-34 Stone structure -
I-35 Design wood structure
-
- Built-In-Grout
-
- The first in LVT, "Built-In-Grout" available
- When installed, the natural grout line will appear, allowing for the natural
elegance of stone and ceramic tiles to shine. ECOLAY+ can be supplied
in grout type according to your request.
-
- Rustic Edge
-
- The first in LVT, ‘ Rustic Edge’ technology of NOX
- Get the natural, timeworn Look of rustic wood flooring, in a range of
on-trend colors and styles.
ECOLAY+ can be supplied with ‘Rustic Edge’ type according to your request.
Only available for 177.8 x 1,219.2 mm (7 x 48 inch)
-
- Non-skid Backing of ECOLAY+
-
- ECOLAY+ can be supplied with non-skid backing
type according to your request.
- ECOLAY+ can be supplied with non-skid backing
Technical Information
- Specifications
- Installation Guideline
- Maintenance
- Test Result
| Brand | Thickness [mm] | Wear Layer | Size [mm] | Pcs/Box | Sqm/Box |
|---|---|---|---|---|---|
| ECOLAY+ | 5 | 0.30 mm / 0.55 mm |
180 x 1,201 | 10 | 2.16 |
| 235 x 1,505 | 6 | 2.12 | |||
| 600 x 600 | 6 | 2.16 | |||
| 914.4 x 914.4 [36" x 36"] | 3 | 2.51 | |||
| 914.4 x 914.4 [36" x 36"] [with Non-Skld backing] |
4 | 3.34 | |||
| 177.8 x 1,219.2 [7" x 48"] | 10 | 2.17 |
- Prior to installation, the subfloor must be heated for 14 days if heating is available, and if not, allow sufficient time to dry out completely.
- Room temperature must be maintained at 18˚C or higher before and during installation.
- The flooring must be allowed to acclimate in the room to be installed for a minimum of 24 hours and be stacked flat on the floor to avoid bending the floor.
- Prior to installation, please ensure that both color and lot# are the same.
- When installing ECOLAY+, be sure to keep dust, dirt or foreign particles away from the locking strip.
- Regularly sweep floor to remove sand and grit that can scratch floor.
- For best results, use only water with a mop. Avoid flooding the floor with too much water.
- For heavily soiled areas, use a neutral ph balanced floor cleaner.
- Use caution when lifting boxes.
- Promptly remove any standing water to avoid slippage.
- Keep ECOLAY+ on the flat surface to keep it from warping.
| Product Specification | Standard | ECOLAY+ |
|---|---|---|

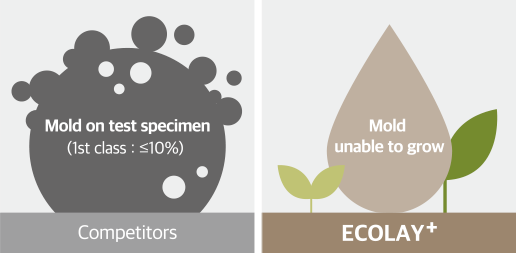

| Surface Treatment (NOX EPT™ Shield) | ISO 22196 / ASTM G21-15 | Anti-Bacterial / Anti-Fungi |
| Level of Use | ISO 10874 | 0.30mm: 23, 31 |
| 0.55mm: 23, 33, 42 | ||
| Total Thickness | ISO 24346 | +0.13mm / -0.10mm |
| Wearlayer Thickness | ISO 24340 | +13% / - 10% |
| Weight (g/m2) | ISO 23997 | +13% / - 10% |
| Dimensional stability & Curling after exposure to heat |
ISO 23999 | ≤0.10% |
| ≤1.0mm | ||
| Abrasion group | EN 660-2 | Class T |
| Castor Chair resistance | ISO 4918 | No damage |
| Squareness & Straightness | ISO 24342 | ≤400mm : ≤0.25mm |
| >400mm : ≤0.35mm | ||
| ASTM F2055 | ≤0.01in | |
| Residual Indentation | ISO 24343-1 | ≤0.1mm |
| Static Load Limit | ASTM F970 | ≤0.005 in @ 250psi min |
| Light Fastness | ISO 105-B02 | ≥ 6 |

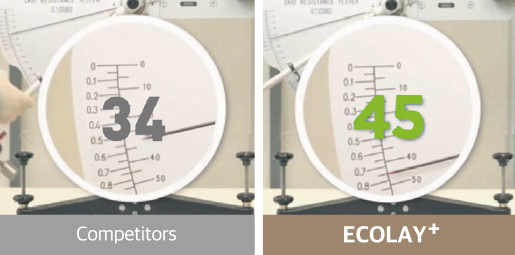

| Slip resistance | EN 13893 | DS |
| DIN 51130 | R10 | |

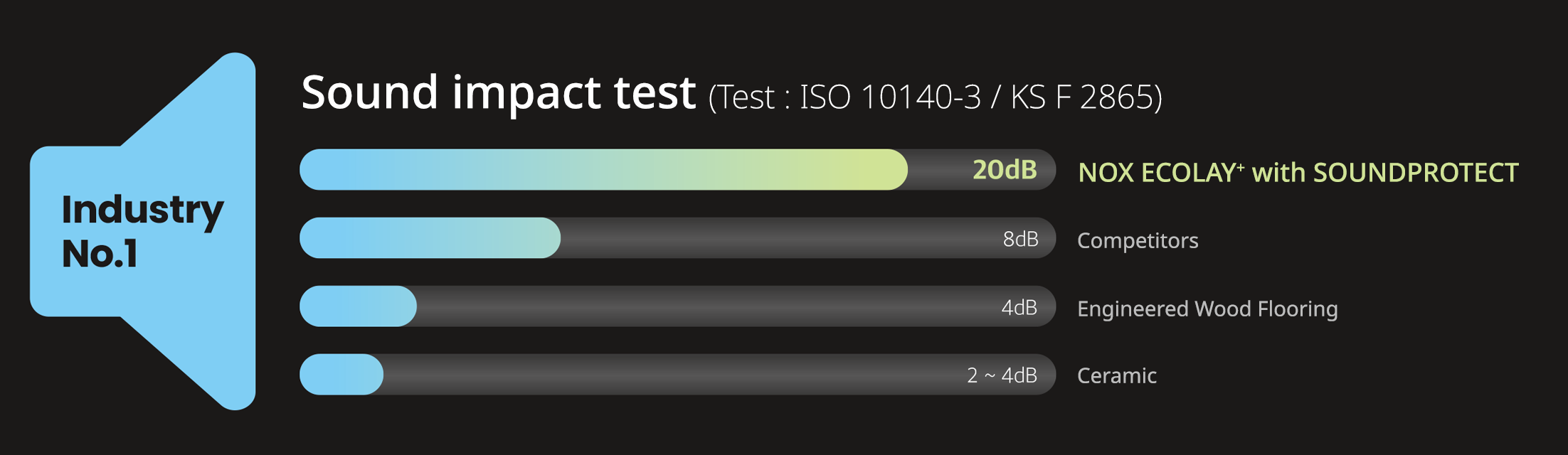

| Impact Sound Reduction | EN ISO 10140-3 | 9db |
| Resistance to Chemicals | ISO 26987 | No defects |
| Thermal Resistance | EN 12667 | 0.017 (m2K/W) |
| Fire Resistance | EN 13501-1 | Bfl-s1 |
| Body Voltage | EN 1815 | ≤2kV |
| Peel Resistance | ISO 24345 | More than 60N/50mm |
| Formaldehyde Group | EN 717-1 | E1 |
| VOC Emissions | IAC GOLD CERTIFIED / FLOOR SCORE CERTIFIED | Very low VOC |
