- Global Click LVT Pioneer since 2005
- Proven Click LVT installed in global market mainly for heavy commercial installation with its unique structure of unparalleled dimensional stability and patented click joint system, 'Click'n go and Drop'n go!®'
-
EPT™ Shield
- Safe and strong 2-fold LVT surface coating technology
- Anti-bacterial coating with superior
scratch-resistance
-
EMT™ Core
- Stable and eco-friendly LVT core technology
- Unique multi-layer structure with supreme
dimensional stability
Difference Specialties
-
- Most diverse sizes
- - 2 plank sizes including grande plank size
- 2 tile sizes including grande tile size
-
- Silent and soft floor
-
- Certified low VOCs and
non-phthalate technology
- Certified low VOCs and
-
- 100% recyclable
-
- Ultra water-resistant
-
- Suitable for heated floor
-
- Easier maintenance than
traditional laminated wood
and natural stone flooring
- Easier maintenance than
-
More durable and hygienic with industry-leading technology-
Rooted in a chemical engineering company, NOX has built its core expertise in producing and processing various resin compounds for application to consumer and industrial goods for over 60 years. NOX’s unique EMT™ Core (multi-layer structure method) and EPT™ Shield (premium surface coating) technologies have served as the foundation for ECOCLICK+, the most stable, durable, and sustainable flooring innovation.
-
- EPT™ Shield
-
⋅ Safe and strong 2-fold LVT surface shield technology
⋅ PU or Ceramic PU coating treatment [Anti-Bacterial] without
using Nano-silver [controversial to be harmful for human health]
⋅ Clear design protection layer
-
- EMT™ Core-6C
-
⋅ Stable and eco-friendly LVT core technology
⋅ 6-layered EMT™ Core structure for long-term dimensional stability
- EPT™ Shield with unparalleled scratch resistance
- 0.55mm thick, high-functioning design protection coating layer prevents discoloration, contamination, scratches, and dents that could be widely used, including in commercial areas with high foot traffic.
- EMT™ Core, a multilayer structure technique with industry-leading stability
- NOX adopted the world’s first and only Integrated Vertical Production system, integrating the multiple layers that comprise each and every LVT product line, ensuring superior noise absorption and long-term dimensional stability.
-
-
Much easier and stronger with a internationally patented click system-
-
Unique patented Click'n go and Drop'n go!® click system
The easiest and strongest click system in the market

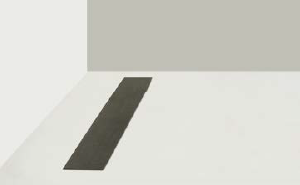

- Easy & Quick Installation

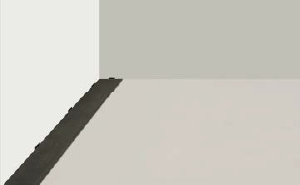

- 1.Unpack
-

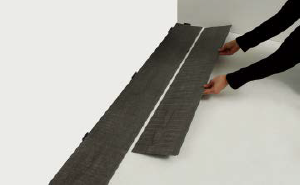

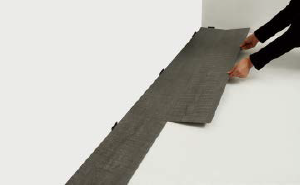

- 2.Angle & Click
-

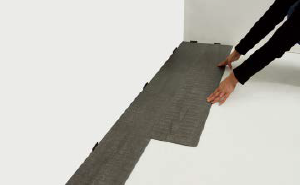

- 3.Drop & Click
-
-
Unique patented Click'n go and Drop'n go!® click system
-
The world's first and the most sustainable LVT flooring-
NOX utilizes carbon-reducing raw materials, ensuring safety for both families and the environment.
- NOX, utilizes carbon-reducing raw materials, ensuring safety for both families and the environment. The raw materials are certified with ISCC PLUS, signifying compliance with The Renewable Energy Directive (RED) of the European Union.
-
- Bio-Circular Balanced PVC
- A sustainable raw material produced from discarded resources like waste cooking oil reduces carbon emissions by 114% compared to conventional PVC
- Bio-Circular Balanced PVC
-
- Eco-friendly
Phthalate-Free Plasticizer
- Eco-friendly plasticizers made from recycled PET bottles, setting an industry-first while enhancing safety and sustainability
- Eco-friendly
- NOX redefines the sustainability standard of flooring and leads global LVT flooring sustainability innovation by expanding the percentage of carbon-reducing materials to the world’s highest level and producing 100% easily recyclable floorings only.
Additional Features
Diverse design and technical features are available upon request
-
- Embossed-In-Register for a realistic texture of natural resources
-
- NOX LVT presents unparalleled realistic texture and visuals of natural resources with the application of advanced Embossed-In-Register technology.
- * Applicable to all wood patterns
- Embossed-In-Register offers 6 different types of surface textures
-

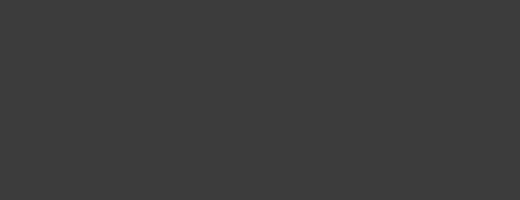

I-01 High-gloss structure -

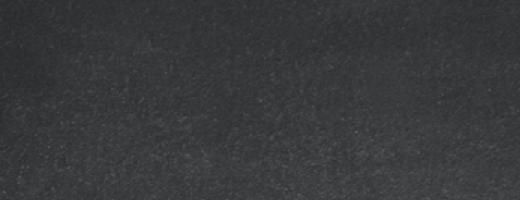

I-03 Sand structure -
.png)

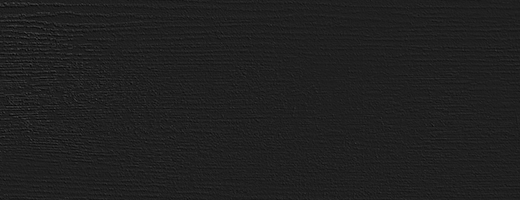

I-14 Wood structure(14) -

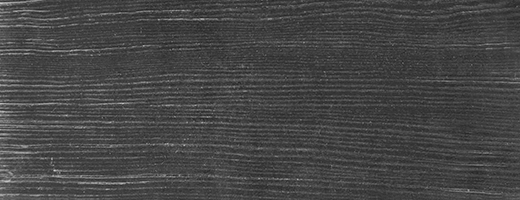

I-19 Rustic Wood structure -
.png)

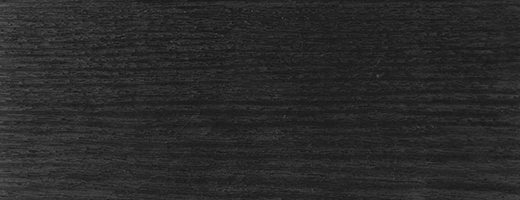

I-22 Wood structure(22) -

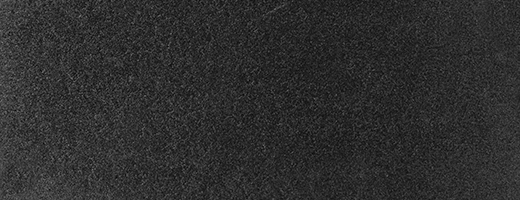

I-34 Ceramic structure
-
- The first in LVT, "Built-In-Grout" available
-
- When installed, the natural grout line will appear, allowing for the natural elegance
of stone and ceramic tiles to shine.
ECOCLICK+ can be supplied in grout type according to your request.
- When installed, the natural grout line will appear, allowing for the natural elegance
Technical Information
- Specifications
- Installation Guideline
- Maintenance
- Test Result
| Brand | Thickness [mm] | Wear Layer | Size [mm] | Pcs/Box | Sqm/Box |
|---|---|---|---|---|---|
| ECOCLICK+ | 5 | 0.30 mm / 0.55 mm |
185 x 1,212 | 8 | 1.79 |
| 235 x 1,505 | 6 | 2.12 | |||
| 305 X 610 | 10 | 1.86 | |||
| 462 x 925 | 6 | 2.56 |
- Prior to installation, the subfloor must be heated for 14 days if heating is available, and if not, allow sufficient time to dry out completely.
- Room temperature must be maintained at 18˚C or higher before and during installation.
- The flooring must be allowed to acclimate in the room to be installed for a minimum of 24 hours and be stacked flat on the floor to avoid bending the floor.
- Prior to installation, please ensure that both color and lot# are the same.
- When installing ECOCLICK+, be sure to keep dust, dirt or foreign particles away from the locking strip.
- Regularly sweep floor to remove sand and grit that can scratch floor.
- For best results, use only water with a mop. Avoid flooding the floor with too much water.
- For heavily soiled areas, use a neutral ph balanced floor cleaner.
- Use caution when lifting boxes.
- Promptly remove any standing water to avoid slippage.
- Keep ECOCLICK+ on the flat surface to keep it from warping.
| Product Specification | Standard | ECOCLICK+ |
|---|---|---|
| Surface Treatment (NOX EPT™ Shield) | ISO 22196 / ASTM G21-15 | Anti-Bacterial / Anti-Fungi |
| Level of Use | ISO 10874 | 0.30mm: 23, 31 |
| 0.55mm: 23, 33, 42 | ||
| Total Thickness | ISO 24346 | +0.13mm / -0.10mm |
| Wearlayer Thickness | ISO 24340 | +13% / - 10% |
| Weight (g/m2) | ISO 23997 | +13% / - 10% |
| Dimensional stability & Curling after exposure to heat |
ISO 23999 | ≤0.10% |
| ≤1.0mm | ||
| Abrasion group | EN 660-2 | Class T |
| Castor Chair resistance | ISO 4918 | No damage |
| Squareness & Straightness | ISO 24342 | ≤400mm : ≤0.25mm |
| >400mm : ≤0.35mm | ||
| ASTM F2055 | ≤0.01in | |
| Residual Indentation | ISO 24343-1 | ≤0.1mm |
| Height difference between with a locking system on the edges |
ISO 10582 | ≤0.1mm |
| Static Load Limit | ASTM F970 | ≤0.005 in @ 250psi min |
| Light Fastness | ISO 105-B02 | ≥ 6 |
| Slip resistance | EN 13893 | DS |
| DIN 51130 | R10 | |
| Impact Sound Reduction | EN ISO 10140-3 | 9db |
| Resistance to Chemicals | ISO 26987 | No defects |
| Thermal Resistance | EN 12667 | 0.017 (m2K/W) |
| Fire Resistance | EN 13501-1 | Bfl-s1 |
| Body Voltage | EN 1815 | ≤2kV |
| Peel Resistance | ISO 24345 | More than 60N/50mm |
| Formaldehyde Group | EN 717-1 | E1 |
| VOC Emissions | IAC GOLD CERTIFIED / FLOOR SCORE CERTIFIED | Very low VOC |
